| Model | SM-SOLON-UL-6KW | Model | SM-SOLON-UL-6KW |
| PV(DC) | Battery (DC) | ||
| Recommended | 9200 Wp | Rated Output Power | 6000 W |
| Max PV Input Power | Max. Charge/Discharge Power | 6000 W | |
| Max Input Voltage | 500 V | Rated Voltage | 48 VDC |
| Start-up Voltage | 125 V | Battery Voltage Range | 40-60 VDC |
| Rated Input Voltage | 370 V | Max. Charge/Discharge Current | 135 A |
| MPPT Input Voltage Range | 125-500 V | Communication Port | CAN/RS485 |
| MPPT Max. Input Current | 18 A | ||
| MPPT Short-Circuit Current | 20 A | Efficiency | |
| No. of MPPT | 2 | Max. Efficiency | 97.6% |
| No. of Strings per MPPT | 1 | Max. MPPT Efficiency | 99.9% |
| Grid(AC) | Max. Euro Efficiency | 96.5% | |
| Max. Input | 6000 W | Protection | |
| Apparent Power | Integrated Protection | Anti-flow Protection DC Reverse Protection DC Circuit Breaker Insulation Resistor Detection GFC Leakage Current Monitoring Anti-islanding Protection Residual Current Monitoring Reverse Polarity Protection Off-grid Overload Protection | |
| Rated Output Power | 6000 W | ||
| Max. Output | 6600 VA | Surge Protection | DC Type II AC Type II |
| Apparent Power | Display and Communication | ||
| Rated AC Voltage | L/N/PE 220 / 230 240 V | Display | LCD+LED+APP |
| Input/output Voltage Range | 180-300 V | Communication | RS485 4G(Optional) WIFI(Dongle Included) |
| Rated Output Voltage Frequency | 50/60Hz | General Data | |
| Input/output Voltage Frequency Range | (45-5) / (55-65) Hz | Dimensions (WxHxD) | 580x330x232 mm |
| Rated Output Current | 26.1 A | Weight | 20.5kg |
| Max. Input/output Current | 28.7 A | Operating Temperature Range | -25 ~ 60 °C |
| Power Factor ( Rated ) | > 0.99 | Noise | <35 dB |
| Power Factor (Adjustable) | 0.8 Leading… 0.8 Lagging | Cooling | Smart Cooling |
| Total Harmonic Distortion | <3% (Rated Power) | Installation Style | Wall-mounted |
| Grid Connection Mode | L/N/PE | Protection Rating | IP65 |
| AC Load Output (Off-Grid) | Warranty | 5 Years | |
| Rated Output Power | 6600 W | Standards Compliance | |
| Max. Output | 6600 W | Grid Connection | IEC 62116 IEC 61727 NRS 097-2-1 EN 50549 EN 50438 C10/11 CE 0-21 AS 4777.2 UNE 206006/206007 VDE 4105 |
| Apparent Power | Safety Regulation | EN/IEC 62109-1/2 | |
| Rated Output Voltage | L/N/PE 220 / 230 / 240 V | Others | EN/IEC 61000-6-1/3 IEC 60068 IEC 61683 |
| Output Voltage Range | 200-240 V | ||
| Rated Output Frequency | 50/60Hz | ||
| Rated Output Current | 26.1 A | ||
| Max. Output Current | 28.7 A | ||
| Total Harmonic Distortion | <3% (R Load) | ||
| On-grid/Off-grid Switching Time | <10 ms |

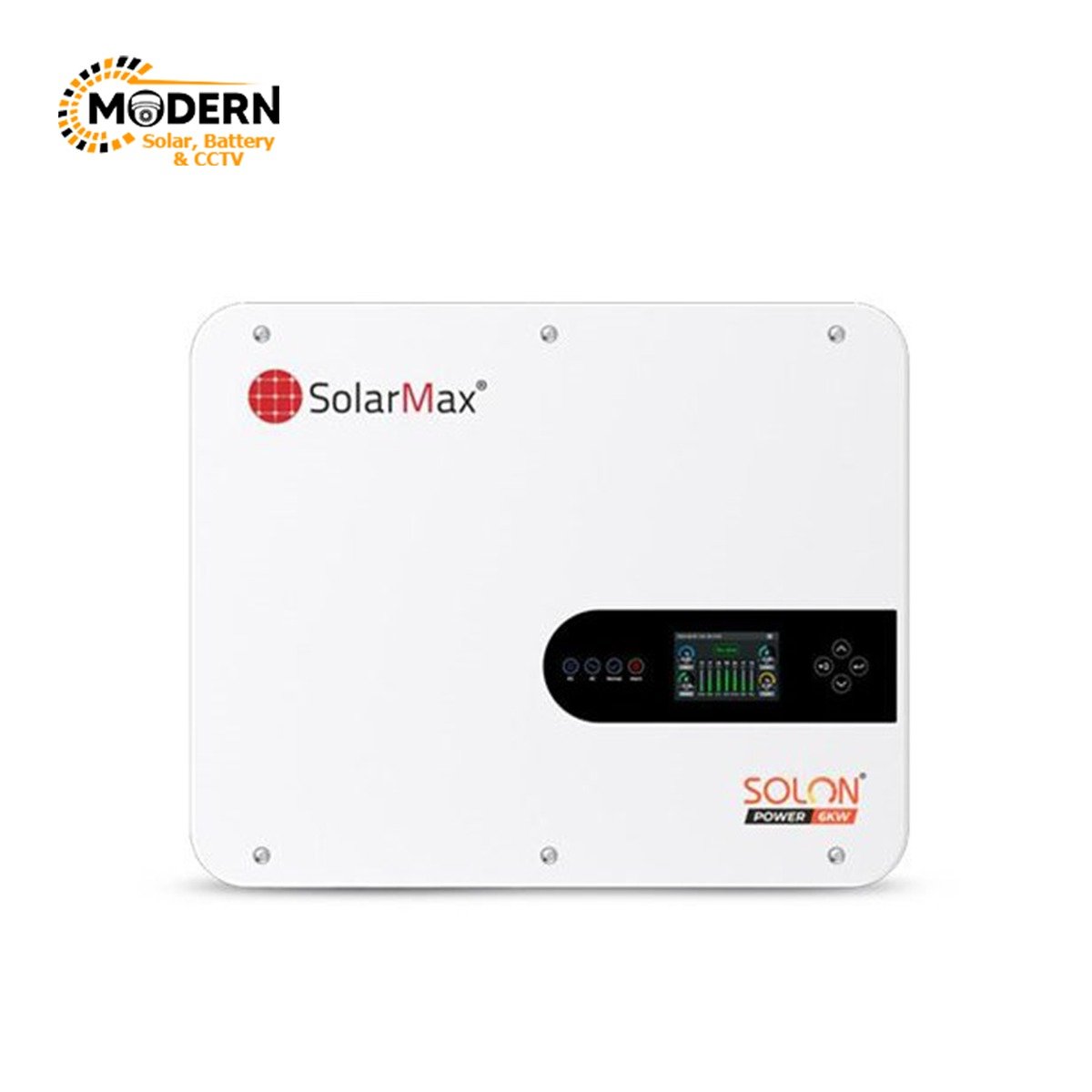

SolarMax Solon IP65 6KW Hybrid Inverter
₨ 222,400
SolarMax Solon IP65 6KW Hybrid Inverter
Dual MPPT Pv Input 9KW +
Dual Ac Output for Normal & Heavy Load
Works with & Without Batteries Upgraded Model
Superior performance & High Reliability with A Grade Semiconductors
Free Wi-Fi Dongle Included for Monitor & Control
Short-Circuit Protection Smart & Safe
Smart Power Management Set Time Schedules
Battery Management System (BMS Built-in)
5 Year Unlimited Parts Replacment & Life Time Free Service Warranty.
