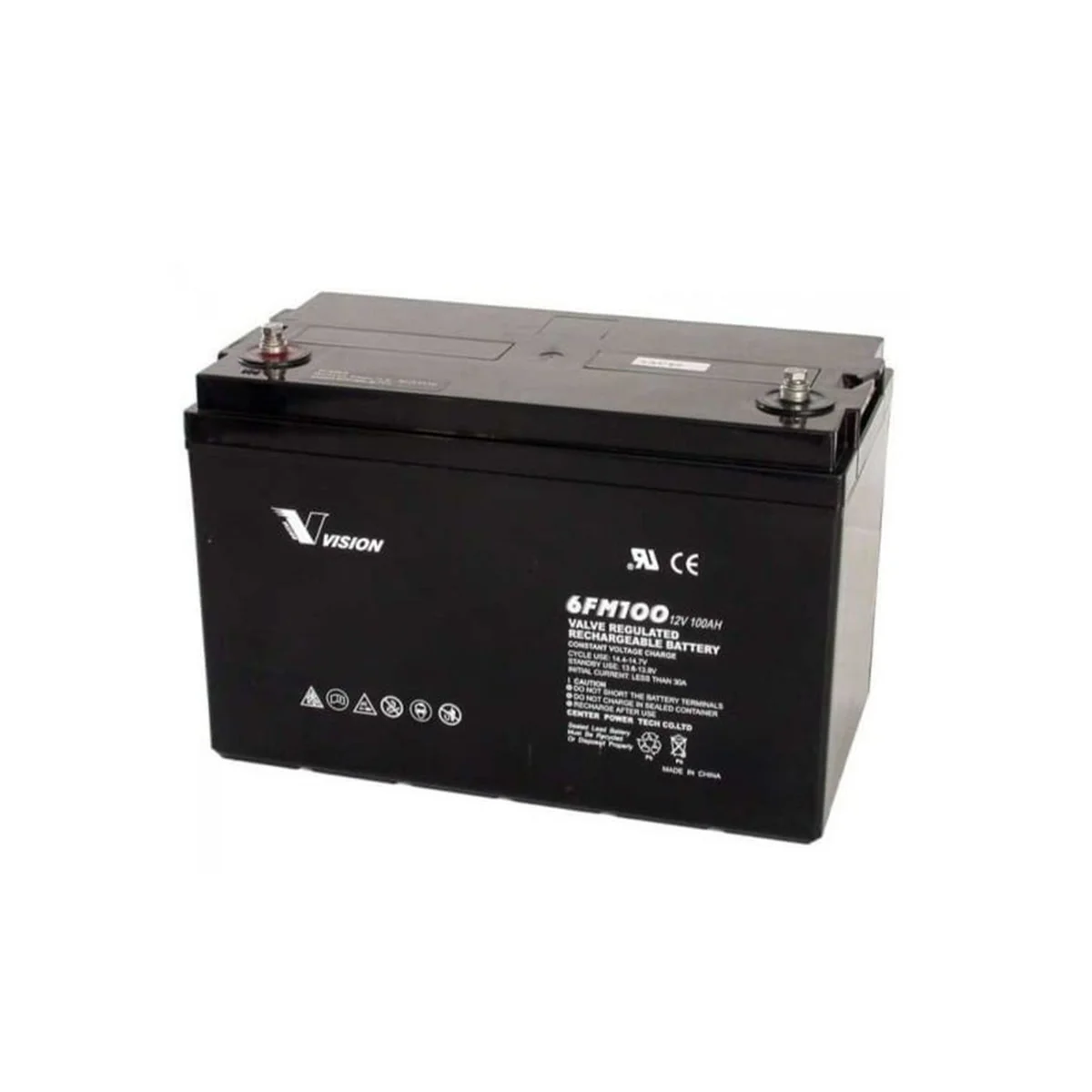

Vision 12V 100Ah Lead Acid

Vision 12V 100Ah Lead Acid AGM Battery – Maintenance-Free, High-Performance
Reliable 12V Vision lead-acid AGM battery with 100Ah capacity, long service life, and maintenance-free operation. Perfect for UPS systems, solar applications, backup power, and cyclic use.

Key Features

Nominal Voltage: 12V, Nominal Capacity: 100Ah
Absorbent Glass Mat (AGM) technology for up to 99% efficient gas recombination
Maintenance-free, leak-proof, and usable in any orientation
Safety one-way valves prevent excessive pressure build-up during overcharge
Not restricted for air transport – complies with IATA/ICAO Special Provision A67
UL-recognized component
High power density with computer-designed lead-calcium-tin alloy grid
Long service life suitable for float or cyclic applications
Low self-discharge
Case and cover available in standard or flame-retardant ABS

Description
Reviews (0)

The Vision 12V 100Ah Lead Acid AGM battery is a sealed, maintenance-free battery engineered for reliable, long-lasting performance in UPS systems, solar setups, backup power, and cyclic applications. Using Absorbent Glass Mat (AGM) technology, the battery immobilizes the dilute sulfuric acid electrolyte between separators and plates, eliminating the need for water addition and ensuring maintenance-free operation.

Special safety valves allow hydrogen and oxygen gases to safely escape if overcharged, preventing excessive pressure build-up. Fully sealed and leak-proof, the battery can be mounted in any orientation. Its high-density lead-calcium-tin alloy grid ensures efficient power delivery, minimal self-discharge, and a long service life for both float and cyclic applications.

Technical Specifications of Vision 12V 100Ah Lead Acid AGM Battery

Feature	Specification
Brand	Vision
Model	12V 100Ah
Nominal Voltage	12V
Number of Cells	6
Design Life	10 years
Nominal Capacity (77℉ / 25℃)	10h: 100Ah, 5h: 83.0Ah, 1h: 61.0Ah
Internal Resistance	≤ 5.7 mΩ (Fully charged, 25℃)
Self-Discharge	~3% of capacity per month at 20℃
Operating Temperature Range	Discharge: -20~60℃, Charge: -10~60℃, Storage: -20~60℃
Max. Discharge Current	900A (5s at 25℃)
Short Circuit Current	2100A
Charge Method (Cycle Use)	Constant Voltage, 2.40–2.45VPC, Max 30.0A, Temp Compensation -30mV/℃
Charge Method (Standby Use)	Constant Voltage, 2.20–2.28VPC, Temp Compensation -20mV/℃
Technology	Lead Acid, Absorbent Glass Mat (AGM)
Case Material	Standard or flame-retardant ABS
Certifications	UL-recognized component
Mounting	Any orientation
Applications	Float or cyclic, UPS, solar, backup power
Maintenance	Maintenance-free
Self-Discharge	Low
