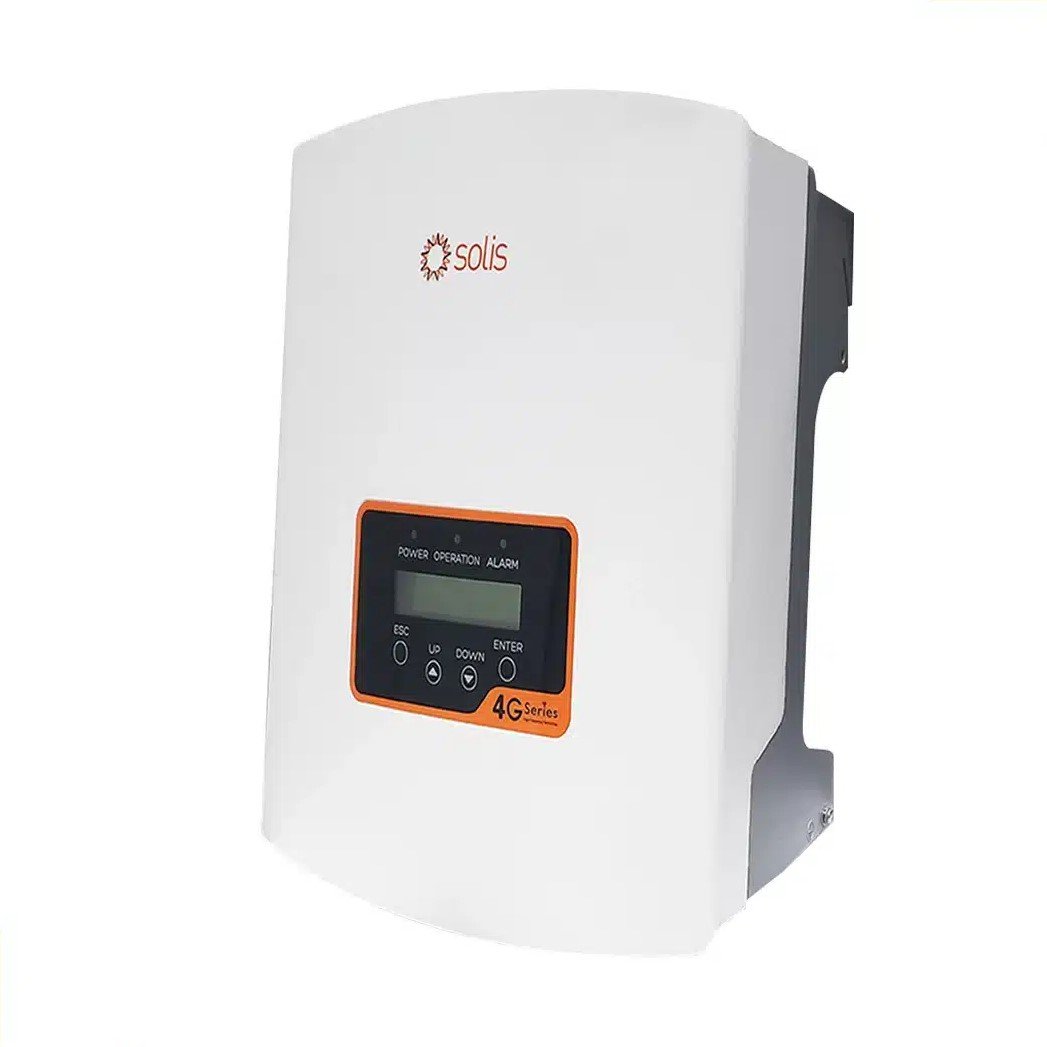

Solis 20kw On-Grid Solis 3Phase 20K-LV Inverter
Original price was: ₨ 285,000.₨ 235,000Current price is: ₨ 235,000.
- High-Efficiency Inverter for Industrial and Commercial Uses
- 98.8% efficiency for maximum energy saving
- Dual MPPT technology enables maximum power harvesting.
- Wide operating voltage (200V-800V) for universal solar panel configurations
- Weather-resistance and durable (IP65-rated) for use outside
- Smart Connectivity: RS485, Wi-Fi, LAN, and GPRS for remote monitoring
- Some protective measures for safe operations are:
- Slim and lightweight construction for easy installation
- Very-low initial voltages to enable greater energy conversion
- Order now from Solar App and maximize your solar energy utilization!
What We Offer with Solis 20KW On-Grid Inverter
Features |
Details |
| Peak efficiency for cost savings | Reduces energy loss by 98.8% and maximizes return on solar investment. Delivers constant power output even during cloud cover. |
| Advanced Dual MPPT Technology | Dual MPPT monitors the power for several solar panel strings for maximum power harvesting. It operates perfectly even if the panels are at different angles. |
| Adjustable Voltage Range | Dual MPPT monitors the power for several solar panel strings for maximum power harvesting. It operates perfectly even if the panels are at different angles. |
| Reliable & Secure Operation | There is built-in overvoltage, short circuit, and under-voltage protection for safe utilization and longevity. |
| Seamless Grid Connectivity | It integrates perfectly into the power grid to offer uninterrupted power supply, suitable for industrial and commercial applications. |
| Weather-Resistant & Durable Construction | IP65-rated sealing offers dust-proofing and waterproofing against harsh environmental conditions and can be externally mounted. |
| Light structure and lightweight | Space-saving, uncomplicated installation structure allows for wall mounting or integration into solar power stations. |
| Smart monitoring and connectivity | With RS485, Wi-Fi, LAN, and GPRS for real-time monitoring and remote management. |
Solis 20KW On-Grid Inverter – Technical Specifications
| MODEL | |
| Max. PV Array Power | |
| Rated Output Power | |
| Peak Array Open Circuit Voltage | |
| MPPT Range @ Operating Voltage |
Grid-Tie Operation
- Nominal Output Voltage: 380-400 V
- Output Voltage Range: 310 to 480 VAC
- Nominal Output Current: 32A
- Power Factor: > 0.99
Efficiency
- 98.8% (Peak DC to AC Conversion)
Grid Input
- Operating Voltage Range for the Input: 180 to 520 VAC
- Frequency Range: 50 Hz/60 Hz (Automatically detects)
- Peak AC Current: 50 Amp
Environmental Conditions
- Humidity: 0 ~ 95% RH (Non
- Operating Temperature: -25 to 60 °C
Why Solis 20KW On-Grid
- Save electricity with maximum energy conversion efficiency
- Intelligent MPPT solution for reliable power output in every weather
- Increased safety measures for safe and reliable performance
- Sleek, lightweight profile for easy installation and use
- Weatherproof build for hard performance
Purchase with Solar App now and experience the full potential of clean, efficient solar power.
